Specifications

CW
Hollow type Load Cells

   특     징
     - 홀 타입 로드셀로 설치가 간편하며 터널, 다리 등의 강도
     - 압력시험에 사용
     - 설치가 쉽고 견고함
     - 은색 광택

   제품사양
Specifications

Specifications	Accuracy
Rated capacity(R.C) Rated output(R.O) Nonlinearity Hysteresis Repeatability Zero balance Temperature effect, on rated output Temperature effect, on zzero balance Temperature range, compensated Temperature range, safe Terminal resistance input Terminal resistance output Insulation resistance bridge/case Excitation recommended Safe overload Cable length	50kgf,100gkf,150kgf,300kgf,500kgf,1tf,2tf,3tf,5tf,10tf 1mv/v±0.4% 1% of R.O. 1% of R.O. 0.2% of R ±2% of R.O. 0.05% of LOAD/10℃ 0.1% of R.O./10℃ -10~70℃ -20~70℃ 350 ±50Ω 350 ±2Ω 2000MΩ 10V 150% R.C φ5mm 4core,3m

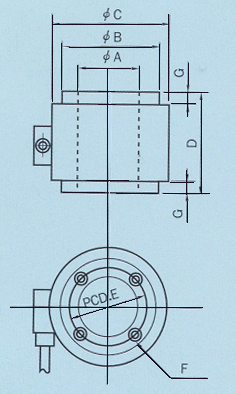

Dimensions Table (Unit:mm)
